Product Details:
Payment & Shipping Terms:
|
| Products Name: | MTM-3020MA | Manual Z-axis Travel (mm): | 120 |
|---|---|---|---|
| X, Y-axis Travel (mm): | 300 X 200 | Resolution (μm): | 0.5 |
| Motorized Motion Z-axis Resolution (μm): | 0.1 | Warranty: | 1 Year |
| High Light: | multifunctional digital microscope,high resolution digital microscope |
||
Product brief:

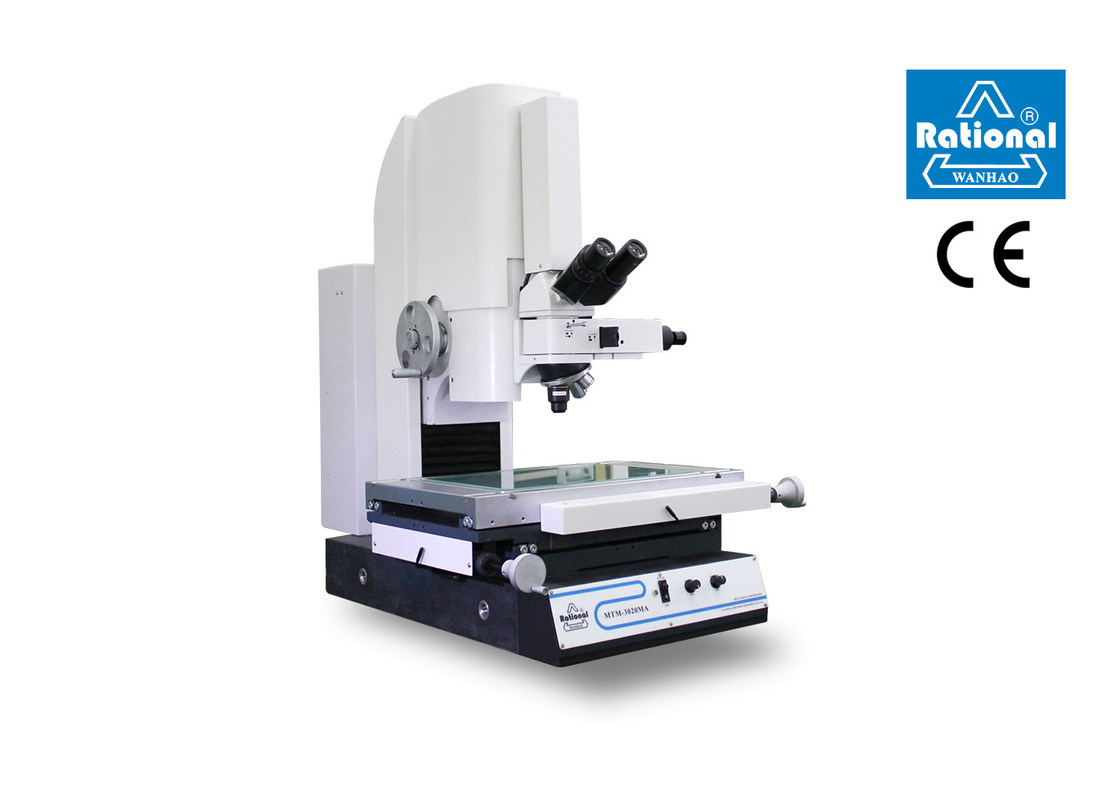

Metalloscope is a high precision and high efficiency measuring instrument that takes image, eyepiece and nanoscale height into consideration, and integrates optics, machinery, electronics, computing and video. This instrument has two sighting systems: television image and visual optics, which can be used to observe metallographic structure of a metal’s surface. This instrument is mainly applied in 2D measurement, sometimes in 3D aided measurement as well. It is widely used in manufacturing sectors, such as electronic components, precise mold, precise tool, plastic, PCB, coating’s thickness, handset grass, etc.
Features:
1. X, Y and Z axes linear scale resolution: 0.5μm.
2. Motorized motion Z-aixs resolution: 0.1μm
3. Automatically measures height.
4. Built-in optical module for measuring polarized light.
5. High speed / non-contact measurement.
6. Coaxial surface light measurement or bottom light measurement available.
7. Can be matched with white light nanometer measuring module to measure object whose thickness is in nanoscale.
Specifications:
|
Model
|
MTM-3020MA
|
||||
|
Working table
|
Metal table size (mm)
|
500 x 330
|
|||
|
Glass table size (mm)
|
350 x 250
|
||||
|
X, Y-axis travel (mm)
|
300 x 200
|
||||
|
Manual Z-axis travel (mm)
|
120
|
||||
|
Automatic Z-axis travel (mm)
|
2
|
||||
|
Dimension (mm)
|
825 x 660 x 910
|
||||
|
Weight (kg)
|
130
|
||||
|
Resolution (μm)
|
0.5
|
||||
|
Motorized motion Z-axis resolution (μm)
|
0.1
|
||||
|
Indication error (μm)
|
E1XY=( 2.5+ L/100) μm (L is the length of the measured object. Unit: mm) | ||||
|
Lens magnification error
|
≦0.08% (including distortion)
|
||||
|
Transmission illumination
|
Halogen lamp whose brightness is adjustable
|
||||
|
Bottom illumination
|
LED whose brightness is adjustable
|
||||
|
|
Eyepiece System
|
Video system
|
|||
|
Lens magnification
|
5X, 10X, 20X, 50X
|
5X, 10X, 20X, 50X; 10X Mirau lens
|
|||
|
Eyepiece magnification
|
10X dual lens cone
|
1/2”CCD camera
|
|||
|
Total magnification
|
50X ~500X
|
142.5X ~1425X (19.5 inches display. Resolution: 1440 x 900)
|
|||
|
Single layer transparent thickness measurement module
|
|||||
|
High resolution mode
|
Fast mode
|
||||
|
Measuring range
|
100nm ~300nm
|
300nm ~500nm
|
500nm ~3μm
|
3μm ~20μm
|
|
|
Resolution
|
5nm
|
5nm
|
7.5nm
|
0.1μm
|
|
