|Products Name:||Video Measuring Equipment||Travel (mm):||400*300|
|X/Y/Z Linear Scale Resolution:||0.5μm||Z Axis Travel (mm):||200|
|Dimension (mm):||1200*1700*1800||Warranty:||1 Year|
video measuring equipment,
cnc video measuring machine

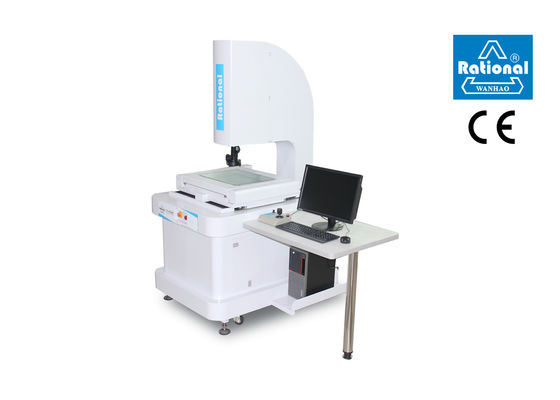

High Resolution Vision Measurement System 1200×1700×1800 Mm 1 Year Warranty
Mainly applied in two-dimensional field, the instrument can also be used for three-dimensional auxiliary meaurement. It’s widely used in machinery, mould, electronics, meter, hardware, plastics, etc.
1. All in one mechanical design.
2. X, Y axes both adopt servo control system - Quick positioning with high precision
3. Main body is made of granite - More stable performance.
4. Auto focusing, auto edge detecting, and auto measuring.
5. Independently developed QMS3D Measuring Software is able to meet various measuring requirements.
6. SPC data processing system contributes to fixture measurement in large scale.
7. Program controlled driven five-ring-eight-zone cold surface light is suitable for sophiscated workpiece.
|Metal table size (mm)||656*556|
|Glass table size (mm)||450*350|
|X/Y/Z Linear scale resolution||0.5μm|
|X/Y indication error||E1XY=(1.9＋L/100)μm ( L refers to measuring length)|
|Z axis travel (mm)||200|
|Transmission system||Ball screw adopted in X, Y, Z axes.|
|Field of view||11.1—1.7mm|
|Power supply||AC 100-240V 50/60Hz|
|Power||500W (computer excluded)|
|Computer||Brand computer (standard)|
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
