Professional Video Measuring System / Optical Cmm Machine Easy Operation

Professional Video Measuring System / Optical Cmm Machine Easy Operation
Professional Video Measuring System / Optical Cmm Machine Easy Operation Professional Video Measuring System / Optical Cmm Machine Easy Operation Professional Video Measuring System / Optical Cmm Machine Easy Operation Professional Video Measuring System / Optical Cmm Machine Easy Operation

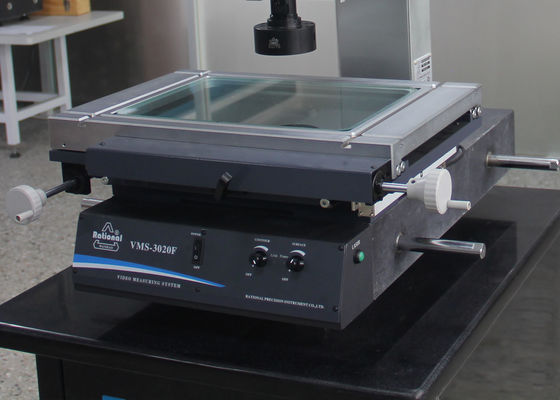

Large Image :  Professional Video Measuring System / Optical Cmm Machine Easy Operation

Product Details:

Place of Origin: Mainland China
Brand Name: Rational
Certification: CE ISO
Model Number: VMS-2010F/VMS-3020F/VMS-4030F

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Vacuum packing & free fumigation wooden case
Delivery Time: After received down payment 5-15workdays
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600 Set per month
Detailed Product Description
Products Name: GIGE Color Camera Video Measuirng Machine Travel (mm): 300×200
Camera: GIGE Color Camera Auto Zoom Lens Magnification: 0.58X~7.5X
Z-axis Travel (mm): 150(can Be Custom Made To 400 Warranty: 1 Year
High Light:

video measuring equipment

,

cnc video measuring machine

Professional Video Measuring System / Optical Cmm Machine Easy Operation



Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

Features:
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.



Specifications:

Working table

Model

VMS-2010F

VMS-3020F

VMS-4030F

Metal table size (mm)

404×228

500×330

606×466

Glass table size (mm)

260*160

350*250

450*350

Travel (mm)

200×100

300×200

400×300

Z-axis travel (mm)

150(can be custom made to 400

Consistency error of origin in different sections (μm)

F series:E0≤20(100mm)every 100mm in Z axis

X,Y,Z Linear scale resolution:0.5μm X,Y-axis indication error:(2.5+L/100)μm (L is the length of the measured object. Unit: mm)

Video system

F series

GIGE Color Camera

Auto zoom lens magnification: 0.58X~7.5X

Magnification: 27.4~351.3X(24"display)

Object view: 14mm~1.4mm

Surface lighting and transmission lighting both adopt adjustable LED

Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)







Our Services



Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.



If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.



We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.



We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.

6. Online technical support.

7. Onsite training and after-sale service by our distributors worldwide.



Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
