Manual Video Measuring System 0.7X~4.5X Auto Zoom Lens Magnification

Name: Manual Video Measuring System 0.7X~4.5X Auto Zoom Lens Magnification
Brand: Rational
SKU: VMS-1510G/2010G/2515G/3020G/4030G
Rating: 4.9 (133 reviews)

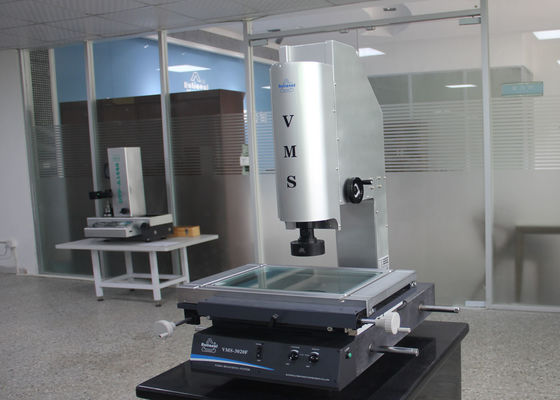

Large Image : Manual Video Measuring System 0.7X~4.5X Auto Zoom Lens Magnification

Product Details:

Place of Origin:	Mainland China
Brand Name:	Rational
Certification:	CE ISO
Model Number:	VMS-1510G/2010G/2515G/3020G/4030G

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Vacuum packing & free fumigation wooden case
Delivery Time:	After received down payment 5-15workdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	600 Set per month

Contact Now

Detailed Product Description

Product Name:	Munual Video Measuirng Machine	Travel (mm):	300*200
Z-axis Travel (mm):	150（can Be Custom Made To 300）	Camera:	1/3”color CCD
Auto Zoom Lens Magnification:	0.7X~4.5X	Warranty:	1 Year
High Light:	optical measurement machine , cnc video measuring machine

Munual Video Measuring System 0.7X~4.5X Auto Zoom Lens Magnification

Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

Features:
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.

Specifications:

Working table	Model	VMS-1510G	VMS-2010G	VMS-2515G	VMS-3020G	VMS-4030G
	Metal table size (mm)	354×228	404×228	450×280	500×330	606×466
	Glass table size (mm)	210*160	260*160	306*196	350*250	450*350
	Travel (mm)	150×100	200×100	250×150	300×200	400×300
Z-axis travel (mm)		150(can be custom made to 300)				can be customized to 400
Consistency error of origin in different sections (μm)		G series :E0≤30(100mm)every 100mm in Z axis
X,Y,Z Linear scale resolution:0.5μm X,Y -axis indication error:(2.5+L/100)μm (L is the length of the measured object. Unit: mm)
Video system	G Series
	1/3”color CCD camera
	Auto zoom lens magnification: 0.7X~4.5X
	Magnification: 26.6~171X
	Object view: 8.1mm~1.3m
	Surface lighting and transmission lighting both adopt adjustable LED

Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)

Our Services

Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.

If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.

We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.

We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.

6. Online technical support.

7. Onsite training and after-sale service by our distributors worldwide.

Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
