Floor Type Vision Measurement System 470×370 Mm Travel ISO Certification

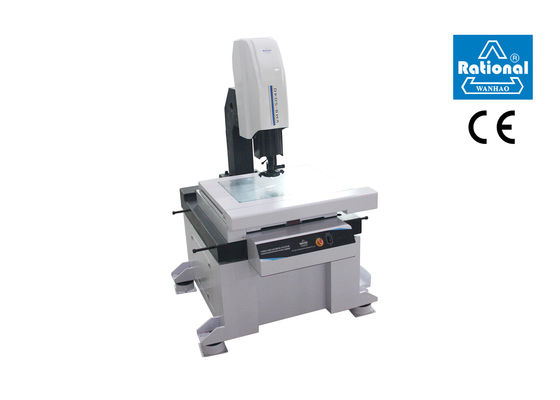

Large Image : Floor Type Vision Measurement System 470×370 Mm Travel ISO Certification

Product Details:

Place of Origin:	Mainland China
Brand Name:	Rational
Certification:	CE ISO
Model Number:	VMS-5040H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Vacuum packing & free fumigation wooden case
Delivery Time:	After received down payment 5-15workdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	600 Set per month

Contact Now

Detailed Product Description

Products Name:	Floor Type Video Mesuring System	Travel (mm):	470×370
Linear Scale Resolution:	0.5μm	Indication Error:	E1XY=(2.5＋L/100)μm
Camera:	1/2” Color CCD	Warranty:	1 Year
High Light:	optical measurement machine , cnc video measuring machine

Floor Type Vision Measurement System 470×370 Mm Travel ISO Certification

Features:
1. Ergonomic design makes it convenient to operate.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Auto zoom feature (optional configuration), which is able to effectively measure the object with multi-magnification while doesn’t need to calibrate pixels.
4. The seft-developed Measuring software has meet various requirements of customers.
5. Adopts subpixel subdivision technique to improve resolving power of boundary.
6. Equipped with joystick, which is also able to be programmed by software.
7. SPC data processing system and large quantities of jig measurement.
8. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.
9. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
10. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
11. Detects the measured workpiece’s specific location by laser indicator, which is quick to position, and convenient to operate.

Specifications:

Model		VMS-5040H
Working table	Metal table size (mm)	786×636
	Glass table size (mm)	570×470
	Travel (mm)	470×370
Linear scale resolution		0.5μm
Indication error		E_1XY=(2.5＋L/100)μm
Video system		1/2” color CCD camera
		0.7~4.5× zoom lens. Total magnification: 20～128×(19.5 inches display. Resolution: 1440*900)
		Field of view: 11.1mm～1.7mm
		Power supply: AC 100-240V 50/60Hz. Power: 1800W (excluding PC)
Dimension (L×W×H)		1200×1270×1870
Z-axis travel(mm)		200 (Can be customized to 400mm)
Weight (kg)		850

Our Services

Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.

If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.

We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.

We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.

6. Online technical support.

7. Onsite training and after-sale service by our distributors worldwide.

Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
