|Name:||Floor-Type Profile Projector||Projector Screen:||600|
|Optional Lens:||10X,20X,50X ,100X||Resolution:||0.5μm|
|X.Z Axis Travel:||200*100*50mm||Warranty:||1 Year|
profile projector machine,
automated optical comparator

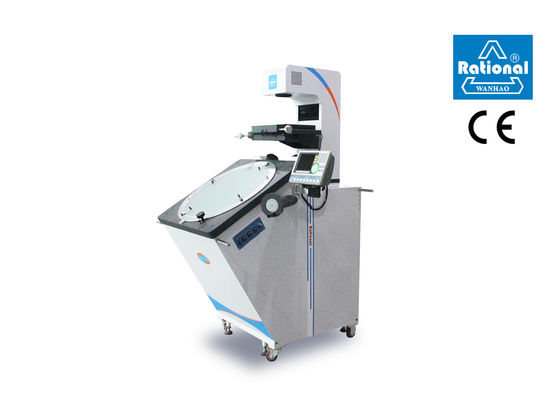

Reliable Digital Optical Comparator Floor Type Clear Imaging And Large Screen
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
|X-axis Travel (mm)||200|
|Y-axis Travel (mm)||100|
|Metal table size (mm)||404×265|
|Glass table size (mm)||270×170|
|Indication error (mm)||2.5+L/75 (L is the length of the measured object. Unit: mm)|
|Z-axis Travel (mm)||50 (focusing)|
|Projection screen||Size (mm)||Ф 615|
|Resolution||1' or 0.01°|
|Lens||Magnification||5× (Optional)||10× (Standard)||20× (Optional)||50× (Optional)||100× (Optional)|
|Field of view (mm)||Ф120||Ф60||Ф30||Ф12||Ф6|
|Working distance (mm)||242.8||143.2||85.5||92||48.5|
|Max. measuring height||50||50||50||50||48.5|
|Power supply: AC 100-240V 50/60Hz. Total power: 650W|
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
