Detailed Product Description
Name: Optical Profile Projector Projector Screen: 300mm
X.Y Axis Travel (mm): 150*100 Optional Lens: 10X,20X,50X ,100X
Resolution: 0.5μm Warranty: 1 Year
High Light:

optical mechanical comparator

,

video profile projector

100X Horizontal Profile Projector Multi - Functional Data Processing System



Product brief :

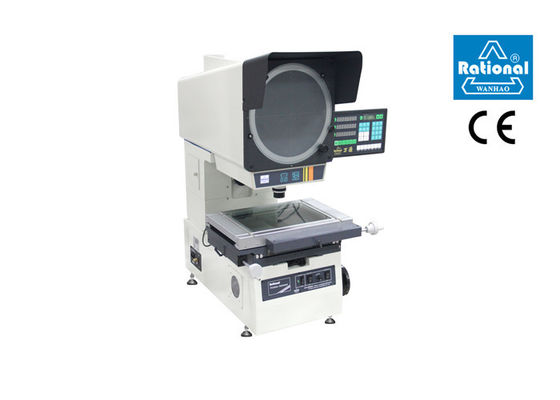

CPJ-3000A/AZ series digital profile projector is an ergonomic and reliable measuring instrument with premium quality. This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects. This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.



Specifications:

Model Reverse
Erect
CPJ-3015A
CPJ-3015AZ
CPJ-3020A
CPJ-3020AZ
CPJ-3025A
CPJ-3025AZ
CPJ-3030A
CPJ-3030AZ
CPJ-3040A
CPJ-3040AZ
X-axis Travel (mm) 150 200 250 300 400
Y-axis Travel (mm) 100 100 150 200 300
Metal table size (mm) 354×228 404×228 450×280 500×330 450×350
Glass table size (mm) 210×160 260×160 306×196 350×250 606×466
Resolution (μm) 0.5 0.5 0.5 0.5 0.5
Indication error (mm) E1XY=(2.5+L/100)
Z-axis Travel (mm) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing)
Dimension (mm) 780×780×1100 810×780×1120 810×780×1120 900×780×1020 1040×780×1120
Projection screen Size (mm) Ф 312
Rotary range 0~360°
Resolution 1' or 0.01°
Lens Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) Ф30 Ф15 Ф6 Ф3
Working distance (mm) 77.7 44.3 38.4 25.3
Max. measuring Height (mm) 90 90 90 90
Power supply: AC 100-240V 50/60Hz. Total power: 400W
