Arc Processing Machine Digital Readout With Additional Calculator

Name: Arc Processing Machine Digital Readout With Additional Calculator
Brand: Rational
SKU: DRO WE6800
Rating: 4.5 (143 reviews)

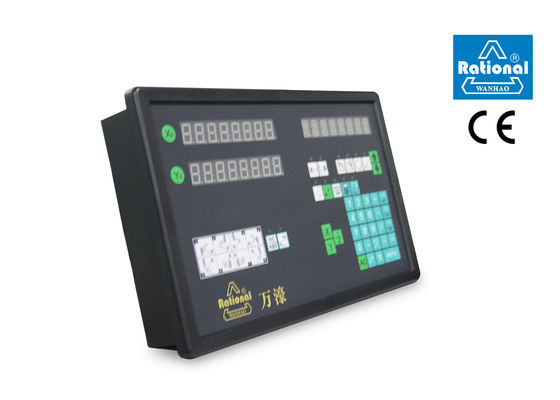

Large Image : Arc Processing Machine Digital Readout With Additional Calculator

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Rational
Certification:	CE SGS ISO
Model Number:	DRO WE6800

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Vacuum packing & free fumigation wooden case
Delivery Time:	After received down payment 5-15workdays
Payment Terms:	L/C, D/A, D/P, T/T

Contact Now

Detailed Product Description

Name::	Scale Readout	Dimension:	296 X 184 X 45 (mm)
Weight:	1.5kg	Resolution:	0.001mm
Application::	Various Kinds Of Machines	Warranty:	1 Year
High Light:	digital position readout , machine digital readout

Arc Processing Machine Digital Readout With Additional Calculator

Product brief:
WE6800 is suitable for various kinds of machines. Coordinating with linear scale, this digital readout analyzes, processes and displays the data of displacement measurement.

Characteristics:
1. Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
2. Anti-jamming capabilities of power supply and signal can be more than 2200V.
3. The indicator indicates the work status.
4. Premium quality and durable panel, which is convenient to replace.
5. Recalls the last position after power failure without battery.
6. Can be connected with linear scale or encoder to carry out processing and measuring for various kinds of machines.
7. Additional calculator feature.
8. Wide range of input voltage (AC 90V～240V).

Features:

Zero clearing.	Numerical analysis.
Pre-sets value.	Filters numerical value
Absolute coordinate / relative coordinate /aided zero clearing.	Metric units / Imperial units transfer.
Diameter / semi-diameter can be selected.	Shrinkage rate.
Finds mechanical original point (RI).	Calculator.
Circular point hole.	Oblique line hole.
Arc processing.	Bevel processing.
Lathe	RS232 communication protocol (Optional configuration).
EDM output.	Edge finer (Optional configuration).

Specifications:

Input voltage	AC 90V~240V
Power	Maximum: 15W
Input signal	Orthogonality TTL square wave; frequency＜2MHZ; electric current＞1mA
Resolution(μm)	0.1,0.2,0.5,
Weight	1.5kg
Dimension	296 x 184 x 45 (mm)
