Anti - Corrosive Grating Ruler Digital Readout Scales 1 Year Warranty

Anti - Corrosive Grating Ruler Digital Readout Scales 1 Year Warranty
Anti - Corrosive Grating Ruler Digital Readout Scales 1 Year Warranty

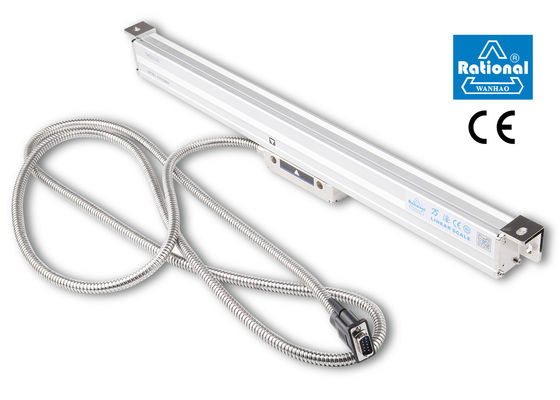

Large Image :  Anti - Corrosive Grating Ruler Digital Readout Scales 1 Year Warranty

Product Details:

Place of Origin: Guangdong China
Brand Name: Rational
Certification: CE SGS ISO
Model Number: WTB5-0700

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Vacuum packing & free fumigation wooden case
Delivery Time: After received down payment 5-15workdays
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 set per month
Detailed Product Description
Name: Grating Ruler Motion Speed:: 60 Meters Per Minute
CCertification: CE Complied Application: Milling Machines Tools
Warranty: 1 Year Feature: Reliable Cost-effective
High Light:

digital linear measuring scale

,

optical linear scale

Anti - Corrosive Grating Ruler Digital Readout Scales 1 Year Warranty



Product Brief:



Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, Linear Scales are widely used for machine tools, such as milling machines, boring machines, lathe machines, grinding machines, machining centers, etc. This product has been effectively modified with practical application experiences and valuable feedbacks from clients since the initial model was launched 20 years ago, and won the admirations from customers worldwide. You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective linear scale.



Features:



1. Motion speed: over 60 meters per minute

2. Long distance transmission: above 100 meters without any extra transceiver

3. Five bearings in the sliding section ensures excellent repetitive positioning

4. Multiple layer of insulated mesh and soft metal protective outer shell applied to the signal cable ensure reliable waterproof properties and good anti-interference

5. Anodized aluminum alloy scale body and chrome plated scale ends bring excellent anti-corrosive properties.

6. Made of special plastics, the dustproof slice is resistant to scratches, corrosion and friction

7. Well designed components allow easy installation and maintenance. Good waterproof and dustproof properties contribute to long lifespan

8.Glass precision metrological grating is used as the measuring indicator of the sensor.



Specifications:



Item Accuracy / output signal Length Resolution Distance RI Working speed
WTA05 (Thin) ±(3+3LO/1000)um or above; 2 TTL squre wave 0°and 90°; Available in 4 TTL square wave 0°, 90°, 180° or 270°. 50-1000 0.0005 0.02mm 50mm 30m/min
WTA1 (Thin) 50-1000 0.001 0.02mm 50mm 50m/min
WTA5 (Thin) 50-1000 0.005 0.02mm 50mm 90m/min
WTB05 (Thick) 50-1000 0.0005 0.02mm 50mm 30m/min
WTB1 (Thick) 50-3000 0.001 0.02mm 50mm 60m/min
WTB5 (Thick) 50-3000 0.005 0.02mm 50mm 90m/min
Other info Phase error: 90±15 / Operating temperature: 0℃-40℃ / Storage temperature: 20℃-50℃
Nominal length When LO=50-1000mm 50mm/index
When LO=1000-3000mm 100mm/index
Max. Travel ≦500mm Nominal length + 30mm Length of signal cable: 2m
500 Nominal length + 30mm Length of signal cable: 3.5m
Max. Trave>900mm Nominal length + 50mm Length of signal cable: 5m
