|Product Name:||Non Contact CNC Visual Measurement System / Video Measuring System||Travel (mm):||300*200|
|Z-axis Travel (mm):||150（can Be Custom Made To 300）||Camera:||1/3”color CCD|
|Auto Zoom Lens Magnification:||0.7X~4.5X||Warranty:||1 Year|
machine vision measurement,
visual measuring machine

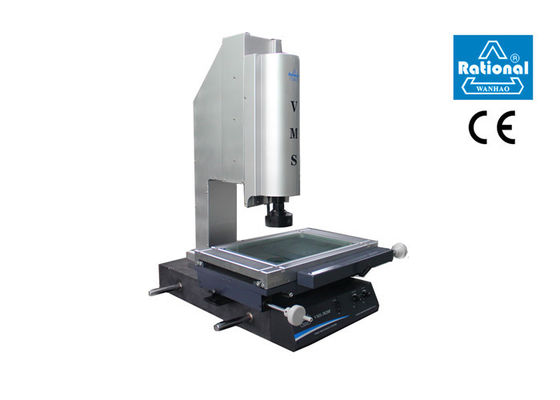

Rational 2D measurement and auxiliary 3D measurement Video Measuring System
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
1. Various kinds of lighting - Meets various requirements for customers.
2. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
3. Foot-switch is matched with measuring software, which makes operation easier.
|Metal table size (mm)||354×228||404×228||450×280||500×330||606×466|
|Glass table size (mm)||210*160||260*160||306*196||350*250||450*350|
|Z-axis travel (mm)||150(can be custom made to 300)||can be customized to 400|
|Consistency error of origin in different sections (μm)||G series :E0≤30(100mm)every 100mm in Z axis|
|X,Y,Z Linear scale resolution:0.5μm X,Y -axis indication error:(2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Video system||G Series|
|1/3”color CCD camera|
|Auto zoom lens magnification: 0.7X~4.5X|
|Object view: 8.1mm~1.3m|
|Surface lighting and transmission lighting both adopt adjustable LED|
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
