|Products Name:||Tool Presetting Machine||Measuring Range:||Diameter (X-axis): Φ300㎜ Height(Z-axis): 30~400㎜|
|Linear Scale Resolution (X, Y-axis):||0.0005mm||Principal Axis:||BT40|
|Lens Magnification:||20X||Warranty:||1 Year|
optical tool presetter,
video tool presetter

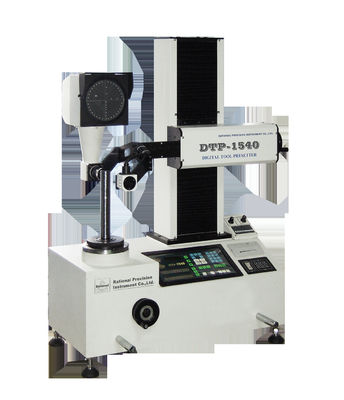

Rational Tool Presetting Machine 0.0005mm Resolution 780×530×950 Mm
This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.
|Measuring range||Diameter (X-axis): Φ300㎜ Height(Z-axis): 30~400㎜|
|Linear scale resolution (X, Y-axis)||0.0005mm|
|Diameter of screen||Φ120㎜|
|Illumination||Adjustable halogen lamp (24V, 20W)|
|Power supply||AC110/220V 50/60HZ|
|Net weight||90kg or so|
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
