Detailed Product Description

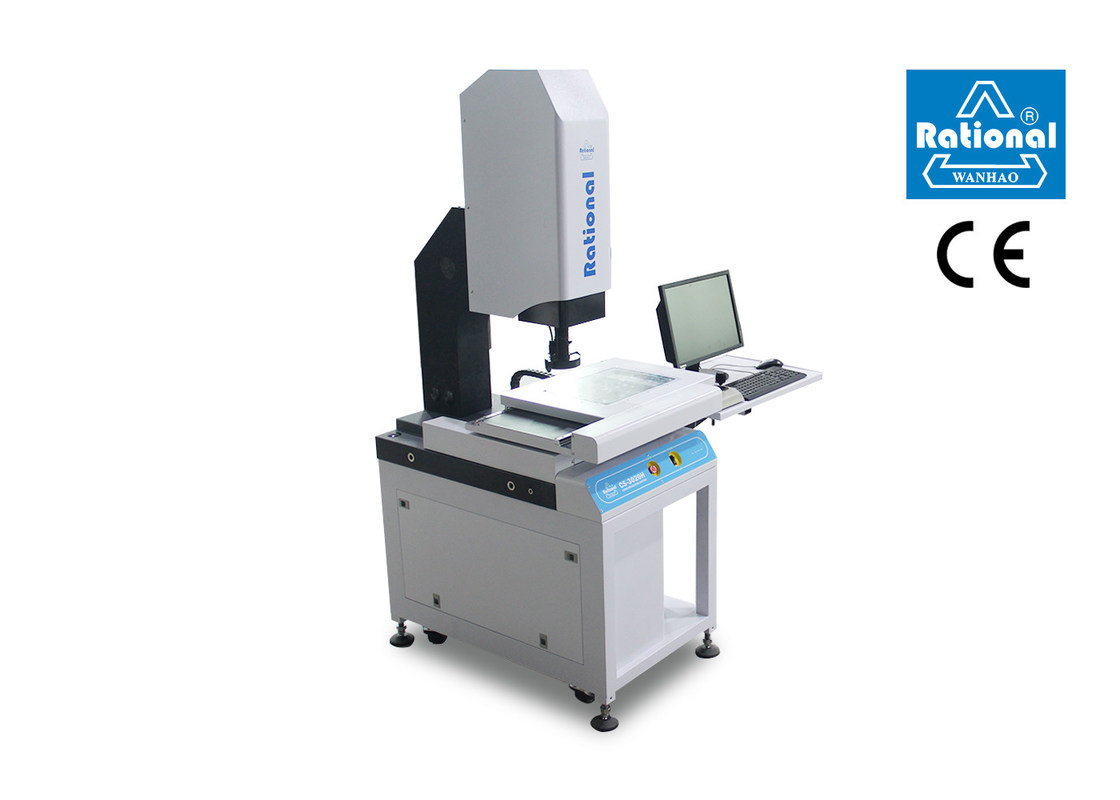

Products Name: Optical Measurement Machine Travel (mm): 300*200
X/Y/Z Linear Scale Resolution: 0.5μm Z Axis Travel (mm): 200
Camera: 1/2"CCD Camera Warranty: 1 Year
High Light:

optical measurement machine


visual measuring machine

Professional CNC Video Measuring Machine 0.5μM Linear Scale Resolution


Mainly applied in two-dimensional field, the instrument can also be used for three-dimensional auxiliary meaurement. It’s widely used in machinery, mould, electronics, meter, hardware, plastics, etc.


1. All in one mechanical design.
2. X, Y axes both adopt servo control system - Quick positioning with high precision
3. Main body is made of granite - More stable performance.
4. Auto focusing, auto edge detecting, and auto measuring.
5. Independently developed QMS3D Measuring Software is able to meet various measuring requirements.
6. SPC data processing system contributes to fixture measurement in large scale.
7. Program controlled driven five-ring-eight-zone cold surface light is suitable for sophiscated workpiece.



Model CS-3020H
Metal table size (mm) 556*406
Glass table size (mm) 350*250
Travel (mm) 300*200
Dimension (mm) 910*1265*1820
Weight (kg) 500
X/Y/Z Linear scale resolution 0.5μm
X/Y indication error E1XY=(2.5+L/100)μm ( L refers to measuring length)
Z axis travel (mm) 200
Transmission system Ball screw adopted in X, Y, Z axes.
Camera 1/2"CCD camera
Zoom lens 0.7—4.5X
Total magnification 20X—128X
Field of view 11.1—1.7mm
Power supply AC 220V 50/60Hz
Power 500W (computer excluded)
Computer Brand computer (standard)
