|Products Name:||CNC Video Measuirng Mchine||Travel (mm):||270×170|
|Linear Scale Resolution:||0.5μm||Z-axis Travel (mm):||150 (Can Be Customized To 300mm)|
|Zoom Lens:||0.7-4.5X||Warranty:||1 Year|
optical measurement machine,
cnc vision measuring system

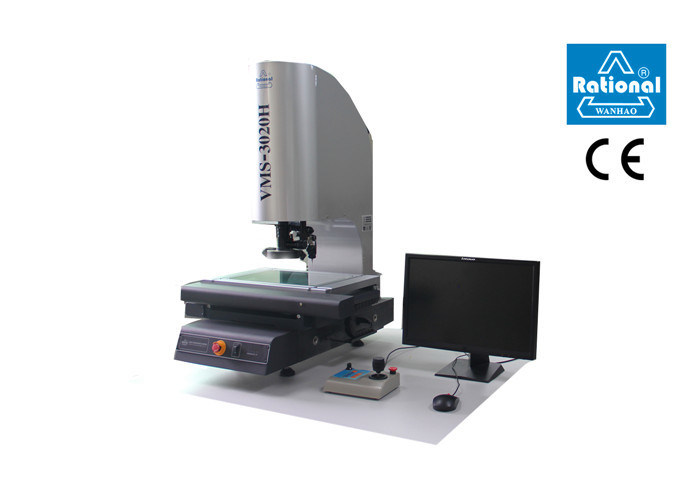

Powerful Programming Video Measuring Machine 0.7-4.5 X Zoom Lens
1. The seft-developed Measuring software has meet various requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning with high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
9. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
|Working table||Metal table size (mm)||450×280||500×330||606×466|
|Glass table size (mm)||306×196||350×250||450×350|
|Linear scale resolution||0.5μm|
|Indication error||E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Consistency error of origin in different sections||E0≤20 (every 100mm displacement in Z axis)|
|Z-axis travel (mm)||150 (Can be customized to 300mm)|
|Accessories||1X lens tube (Standard)||0.5X lens tube (Optional)||Working distance (mm)|
|Additional lens||Magnification||Field of view (mm)||Magnification||Field of view (mm)|
|Brand PC (Standard), joystick (Standard)|
|Video system||1/2” color CCD camera. Brand zoom lens (Optional)|
|Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900)|
|Field of view: 11.1mm~1.7m|
|Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC)|
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
