|Type:||Digital Optical Comparator||Projector Screen:||300mm|
|X.Y Axis Travel (mm):||150*100||Optional Lens:||20X,50X ,100X|
|Resolution:||0.5μm||Certified:||ISO 9001-2015 And CE Certified|
profile projector machine,
automated optical comparator

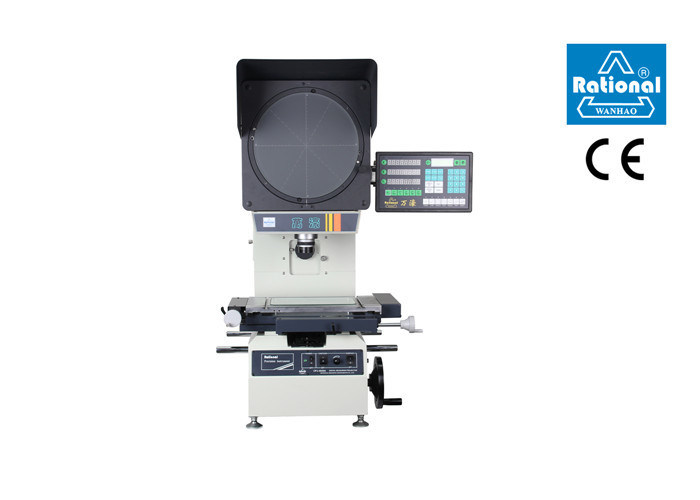

Multi - Functional Mechanical Optical Comparator Stable Performance
Product brief :
This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
|X-axis Travel (mm)||200||250||300||400|
|Y-axis Travel (mm)||100||150||200||300|
|Metal table size (mm)||404×228||450×280||500×330||450×350|
|Glass table size (mm)||260×160||306×196||350×250||606×466|
|Indication error (mm)||E1XY=(2.5+L/100)|
|Z-axis Travel (mm)||100 (focusing)||100 (focusing)||100 (focusing)||100 (focusing)|
|Projection screen||Size (mm)||Ф 312|
|Resolution||1' or 0.01°|
|Lens||10× (Optional)||20× (Optional)||50× (Optional)||100× (Optional)|
|Power supply: AC 100-240V 50/60Hz. Total power: 400W|
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
