|Name:||Horizontal Profile Projector||Projector Screen:||300MM|
|Optional Lens:||10X,20X,50X ,100X||Resolution:||0.5μm|
|X.Z Axis Travel (mm):||10X,20X,50X ,100X||Warranty:||1 Year|
automated optical comparator,
horizontal optical comparator

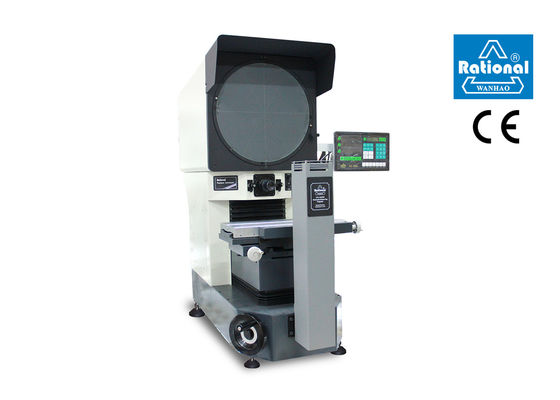

Long Strode Horizontal Digital Optical Comparator 0~360° Projector Screen Rotary Range
Horizontal Profile Projector, an ergonomic measuring instrument with reliable mechanical structure and high precision magnification, can effectively and efficiently inspect profile, section, surface and outline of complicated workpiece.
This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
|X-axis Travel (mm)||250|
|Y-axis Travel (mm)||150|
|Worktable size (mm)||450×200|
|Swing range||±15° ( can be custom made to ±25°)|
|Indication error (mm)||X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm)|
|Z-axis Travel (mm)||100 (focusing)|
|Projectorscreen||Size (mm)||Ф 400|
|Resolution||1’ or 0.01°|
|Lens (CPJ-4025W)||Magnification||5× (Optional)||10× (Standard)||20× (Optional)||50× (Optional)||100× (Optional)|
|Field of view (mm)||Ф80||Ф40||Ф20||Ф8||Ф4|
|Working distance (mm)||93.7||103.9||95.1||65.7||35.0|
|Data processing system||Multi-functional DRO DC-3000|
|Illumination||Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp.|
|Accessories||Printer, edge detector, Measuring software M2D-CPJ, etc.|
|Power supply: AC 100-240V 50/60Hz. Total power: 450W|
