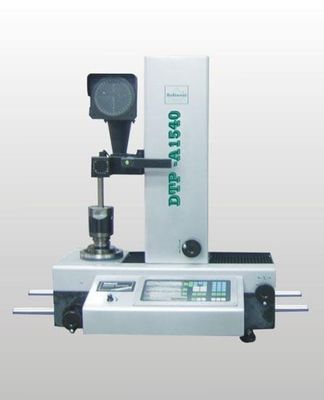

High Precision Tool Presetting Machine Inspect The Angle Round Corners

High Precision Tool Presetting Machine Inspect The Angle Round Corners
High Precision Tool Presetting Machine Inspect The Angle Round Corners

Large Image :  High Precision Tool Presetting Machine Inspect The Angle Round Corners

Product Details:

Brand Name: rational
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Vacuum packing & free fumigation wooden case
Delivery Time: After received down payment 5-15workdays
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Production: Tool Presetting Machine Feature: High Precision
Application: Inspect The Angle, Round Corners Nspect The Angle, Round Corners: 780×530×950(mm)
Power: Electric Measuring Range: Height (Z Axis) 30~400mm
High Light:

optical tool presetter

,

video tool presetter

High Precision Tool Presetting Machine Inspect The Angle Round Corners





Product feature:



The instrument is set light, machine, electricity and video technology in one of the tool presetting detector. Mainly used to measure the CNC machine tools, machining centers and flexible manufacturing units used in the boring and milling cutter cutting edge of the precise coordinates of the location, and can check the tip of the angle, fillet and edge of the situation.



Product brief:
This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.

Specifications:

Standard principal axis

Available in BT30, BT40 or BT50 in accordance with customized requirement.

Measuring range

Diameter (X-axis): 300mm Height (Z axis): 30~400mm

Digital Measuring System

Linear scale resolution (X, Z-axis): 0.0005mm

Diameter, semi-diameter, height, angle, arc, cutting angle, or back bevel angle available by DTP-1540

Sampling by foot-switch; output by RS232; output by printer

Aiming System

HD CCD camera, 17color display

0.5X lens (Total magnification: 20X)

Standard: cross curve

Illumination

Profile illumination is LED. Surface illumination is halogen lamp (24V, 30W). Brightness adjustable.

Dimension (L×W×H)

780×530×950(mm)

Weight

90kg or so




Rational Precision Instrument Co., Ltd., was set up in Guangdong, China in 1995, and is now a professional company in precise measuring field. With the R&D force from both Taiwan and mainland China, Rational has been a successful high-tech company by dedicating to innovation and manufacturing for measuring systems. Rational has been highly focused on precise and high resolution measuring equipment and is a leading supplier of varieties of measuring systems or devices such as Digital Measuring Projectors, Video Measuring Systems and Linear Scales in China and Asia. With the state of the art technology, which integrates optics, machinery, electronics and software engineering, Rational has won outstanding reputation in precision measuring field. We have been awarded main titles of good reputation and honored enterprises in Guangdong province, China for many years and are ISO9001-2008 and CE certified.
