|Product Name:||Video Measuring Machine||Travel (mm):||Custom Made|
|Z-axis Travel (mm):||150（can Be Custom Made To 300）||Camera:||1/3”color CCD|
|Auto Zoom Lens Magnification:||0.7X~4.5X||Other Name:||Video Measuring System|
cmm vision system,
visual measuring machine

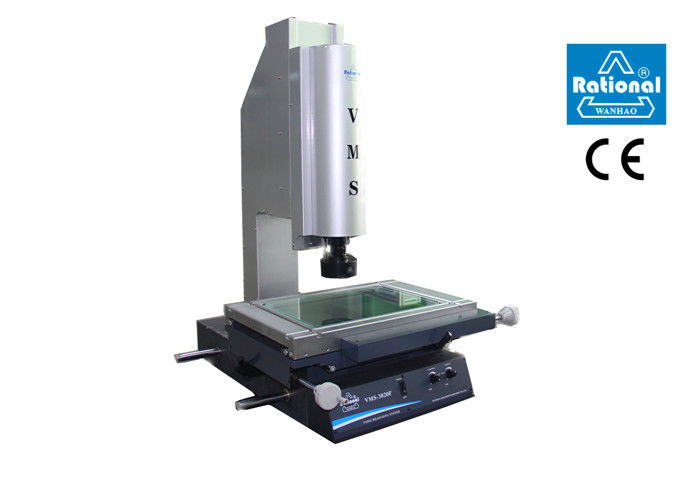

Video Measuring Machine 2.5D 3D CNC measurement Video Measuring System
30x Video Measuring Machine Foot - Switch Matched With Measuring Software
1. Various kinds of lighting - Meets various requirements for customers.
2. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
3. Foot-switch is matched with measuring software, which makes operation easier.
|Metal table size (mm)||354×228||404×228||450×280||500×330||606×466|
|Glass table size (mm)||210*160||260*160||306*196||350*250||450*350|
|Z-axis travel (mm)||150(can be custom made to 300)||can be customized to 400|
|Consistency error of origin in different sections (μm)||G series :E0≤30(100mm)every 100mm in Z axis|
|X,Y,Z Linear scale resolution:0.5μm X,Y -axis indication error:(2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Video system||G Series|
|1/3”color CCD camera|
|Auto zoom lens magnification: 0.7X~4.5X|
|Object view: 8.1mm~1.3m|
|Surface lighting and transmission lighting both adopt adjustable LED|
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
