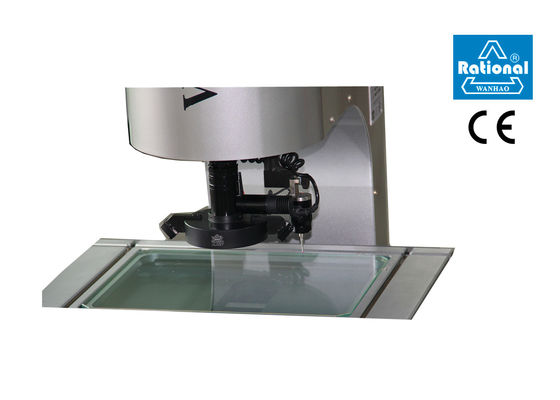

​250W Visual Measurement System With Independently Developed QMS3D Software

​250W Visual Measurement System With Independently Developed QMS3D Software
​250W Visual Measurement System With Independently Developed QMS3D Software ​250W Visual Measurement System With Independently Developed QMS3D Software ​250W Visual Measurement System With Independently Developed QMS3D Software ​250W Visual Measurement System With Independently Developed QMS3D Software ​250W Visual Measurement System With Independently Developed QMS3D Software

Large Image :  ​250W Visual Measurement System With Independently Developed QMS3D Software

Product Details:

Place of Origin: Mainland China
Brand Name: Rational
Certification: CE ISO
Model Number: VMS-2515H/VMS-3020H/VMS-4030H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Vacuum packing & free fumigation wooden case
Delivery Time: After received down payment 5-15workdays
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600 Set per month
Detailed Product Description
Products Name: Visual Measurement System Power: ​250W
Linear Scale Resolution: 0.5μm Z-axis Travel (mm): 150 Mm
Zoom Lens: 0.7-4.5X Warranty: One Year
High Light:

optical measurement machine

,

visual measuring machine

250W Cnc Vision Measuring System Self - Developed Sophisticated Embedded Module Control System



Features:


1. The seft-developed Measuring software has meet various requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.



Specifications:

Model VMS-2515H VMS-3020H VMS-4030H
Working table Metal table size (mm) 450×280 500×330 606×466
Glass table size (mm) 306×196 350×250 450×350
Travel (mm) 220×120 270×170 370×270
Dimension (mm) 760×600×900 760×600×900 970×670×940
Weight (kg) 146 168 266
Z-axis travel (mm) 150 (Can be customized to 300mm)
Accessories 1X lens tube (Standard) 0.5X lens tube (Optional) Working distance (mm)
Zoom lens 0.7-4.5X 0.7-4.5X
Additional lens Magnification Field of view (mm) Magnification Field of view (mm)
0.5X (Optional) 10-64X 22-3.4 5-32X 44-6.8 175
1X (Standard) 20-128X 11.1-1.7 10-64X 22-3.4 92
2X (Optional) 40-256X 5.5-0.9 20-128X 11.1-1.7 36
Brand PC (Standard), joystick (Standard)
Video system 1/2” color CCD camera. Brand zoom lens (Optional)
Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900)
Field of view: 11.1mm~1.7m
Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC)





We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.

6. Online technical support.

7. Onsite training and after-sale service by our distributors worldwide.



Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
